Audio Series

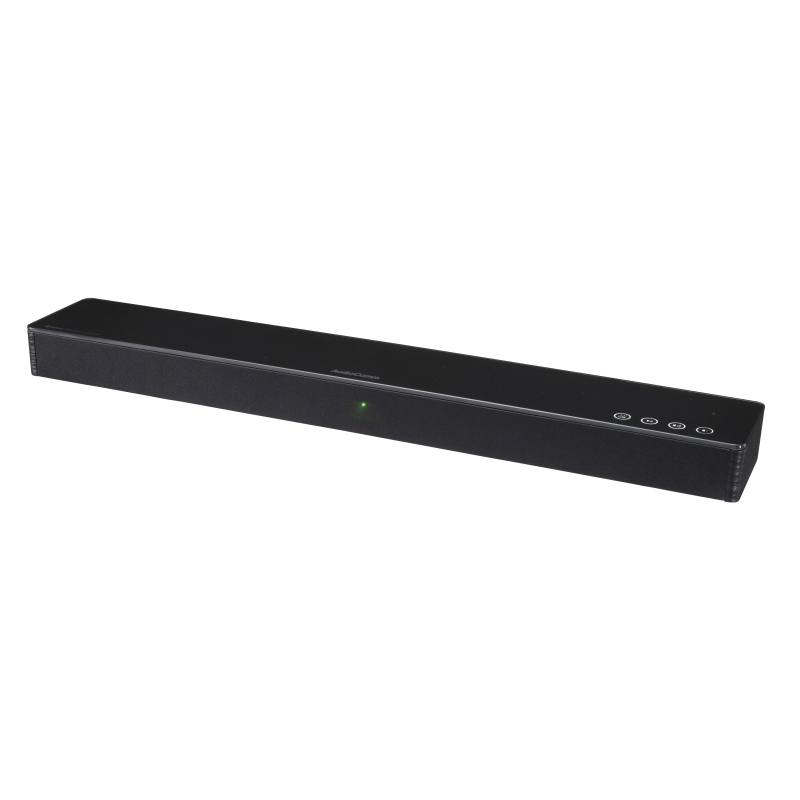

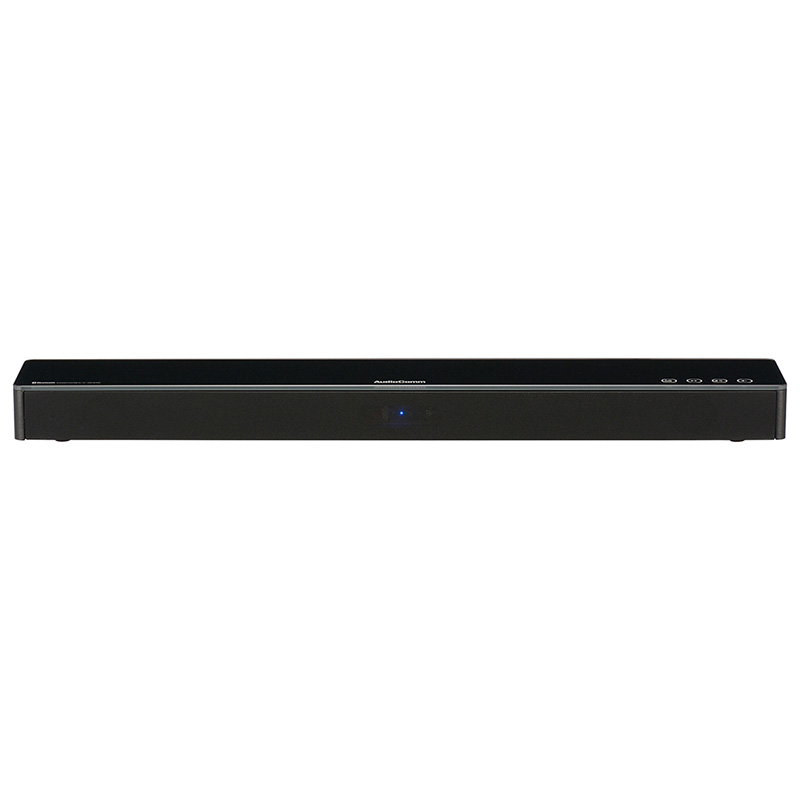

Product name: Bluetooth TV speaker system ASP-W753Z
Description of functional features:
1. Support Bluetooth Ver.5.0 (A2DP/ABRCP)
2. Integrated output power 30W, equipped with 2.1ch power amplifier
3. With HDMI (ARC corresponding)/optical fiber/RCA/input terminal

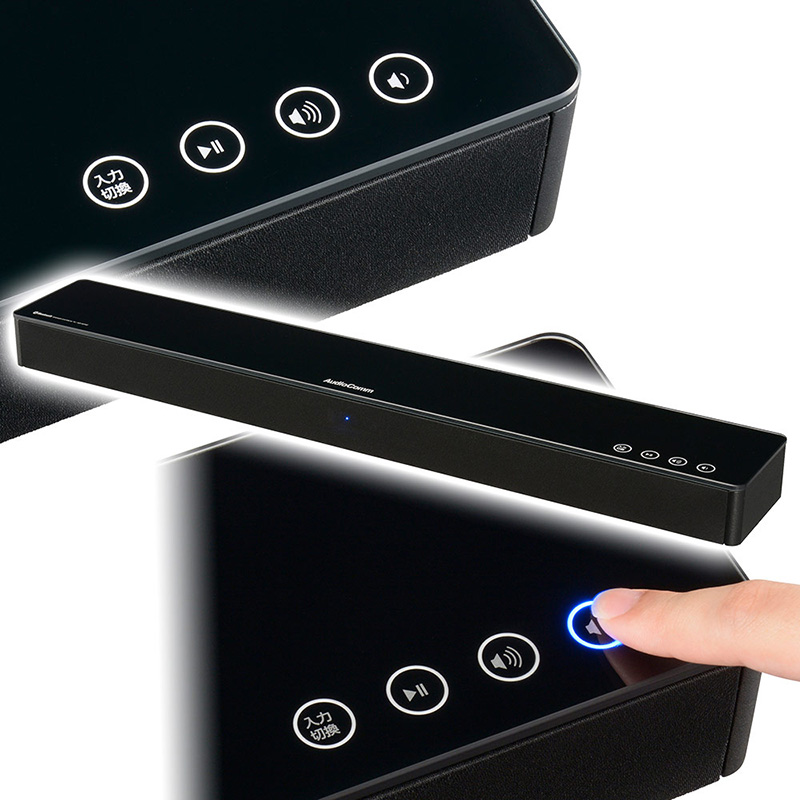

4. Touch button function of surface toughened glass belt
5. With infrared remote control function
Specifications:
1. Power supply: this machine... DC18V2500mA (with AC adapter), remote control... DC3V (single 4-shaped dry battery × 2)
2. Rated power consumption: about 40W
3. Maximum output: integrated output 30W (left and right speakers 5W+5W, subwoofer 20W)
4. Loudspeaker: left and right loudspeakers (diameter: about 40mm/impedance: 8 Ω), subwoofer (diameter: about 93mm/impedance: 6 Ω)
5. Frequency response: 30Hz-18kHz
6. Bluetooth Ver.5.0/2.1+EDR, configuration file... A2DP/AVCP, output... Class2, maximum receiving distance... about 10m, corresponding codec... SBC
7. Input terminals: HDMI terminal, optical fiber sound input terminal, external sound input terminal (RCA L/R terminal)
8. Working temperature/humidity: temperature... 0~45 ℃, humidity... 20~80% (no condensation)
9. Overall dimension: width 75.5 × Height 6 × Depth 11.5cm (excluding protrusions)
10. Weight: about 2.7kg
11. Accessories: special remote controller, two 4-shaped dry batteries (for remote controller), special AC adapter, HDMI (corresponding to ARC) cable, optical fiber sound cable (square terminal), RCA connecting wire (RCA? φ 3.5mm stereo mini plug), user manual with warranty
[Note]
※ The Bluetooth communication distance is about 10m at most when there is no obstacle (conforming to Class2 standard, which varies according to the use environment)
