CD Series

Product name: portable CD player CDP-820Z
Description of functional features:
1. The top cover is equipped with a viewing window
2. With sound output terminal to support external speakers
3. DC socket is provided to support the power supply of household adapter (the output voltage of adapter shall be used according to the specification requirements)
4. With 60 second shock resistance to prevent sound interruption
5. With LCD
6. With programming function
Specifications:
1. Sound channel: 2-channel (stereo)
2. Power supply: DC3V single 3-type alkaline dry battery (LR6) × 2PCS (sold separately), external power supply DC5V1A/(AC adapter sold separately)
3. Headphone output（ φ 3.5mm stereo mini plug)... maximum output level 15mW+15mW
4. Sound output（ φ 3.5mm stereo mini plug)... sound output level 0.4V+0.4V (for active speakers)
5. Service time standard: use the new alkaline dry battery for about 8 hours (this is the standard for medium volume use. It depends on the use conditions)
6. Overall dimension: width 142 × Height 29 × Depth 142mm (excluding protrusions)
7. Weight: about 200g (excluding batteries and accessories)
8. Accessories: remote control (with clip), stereo headset, and operation manual with warranty
[Note]
※ The rechargeable battery may not work normally due to low rated voltage. Please use alkaline dry battery.

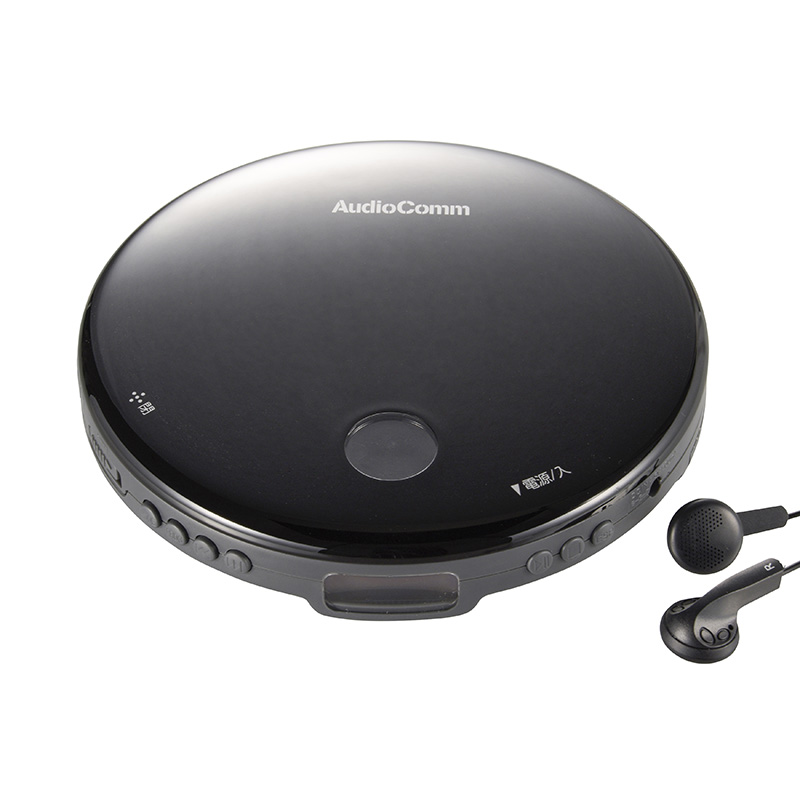

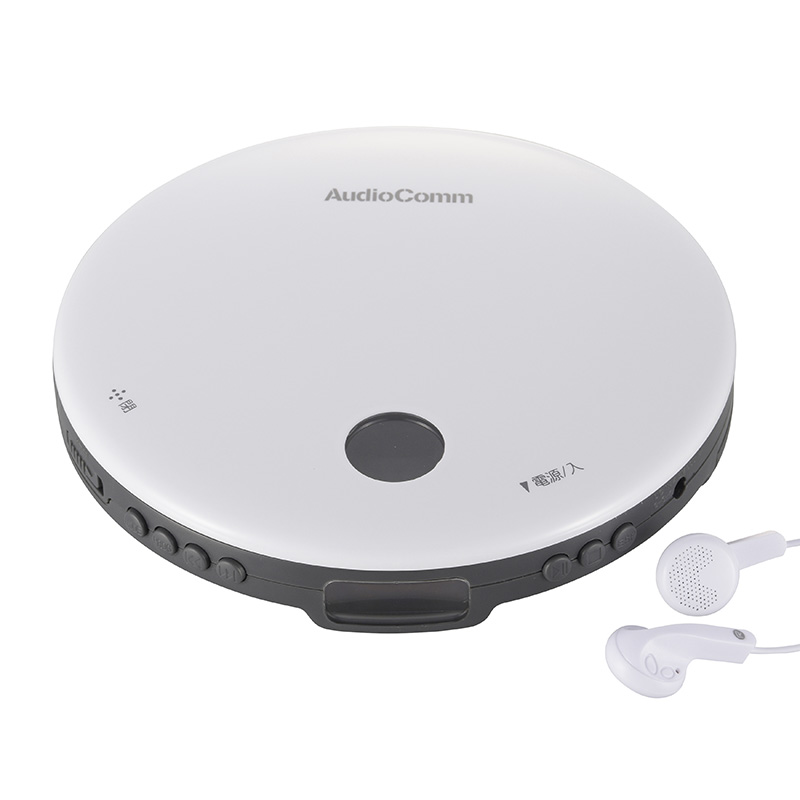

The machine color is silver/white/black
