DVD Series

Product specification parameters

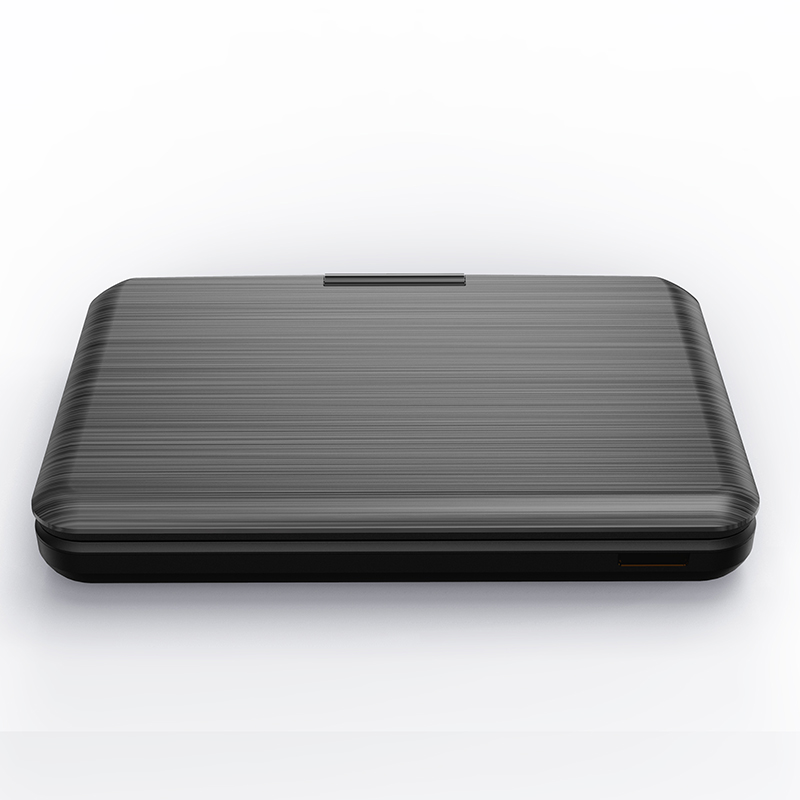

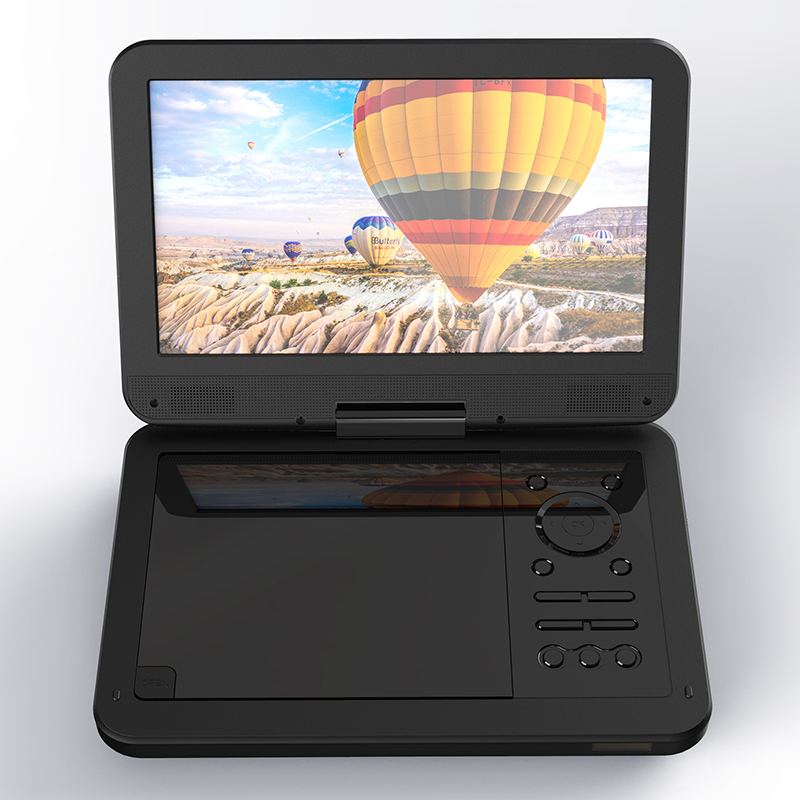

(Product name: 10.1-inch LCD portable DVD player/ground digital tuner)
1. Power supply: DC input 12V/1.5A, adapter AC100 ～ 240V50/60Hz
2. Appearance dimension: about 260 (W) X42 (H) X184 (D) mm (folded state)
3. Product weight: about 950g (including battery)
4. Screen size: 10.1-inch TFT LCD resolution 1024X600RGB LED backlight
5. Power consumption: about 18W
6. Working temperature: about 0 ℃~40 ℃
7. Supported disc format: CD. CD-R/RW; DVD, DVD-R/RW (including VR mode/CPRM disc)
8. Support video format: MPEG1 MPEG2 AVI (resolution below 720 * 576)
9. Music formats supported: MP3, AC3, WMA
10. Support image format: JPEG
11. Output terminal: AV output * 1, headphone output * 1（ φ 3.5mm）
12. Input terminal: AV input * 1, DC input（ φ 4.0mm), ISDB-T antenna input terminal * 1
13. Interface: USB (2.0) * 1 can run up to 16GB;
SDHC * 1 Class 6 or above, the maximum operating capacity is 16GB;
Mini BCAS card socket * 1
14. TV function (ISDB-T): fullseg/oneseg/automatic switching UHF 470-770MHz (UHF13-62CH)
15. Horn output power: 2W * 2
16. Built in rechargeable battery: Li Po (lithium polymer) 7.4V1500mAh 11.1Wh
17. Battery charging and discharging time: charging time: about 4 hours; playing time: about 1.5 hours (※ The charging time and charging and regeneration time vary according to the use environment)
