TV Series

Product specification parameters

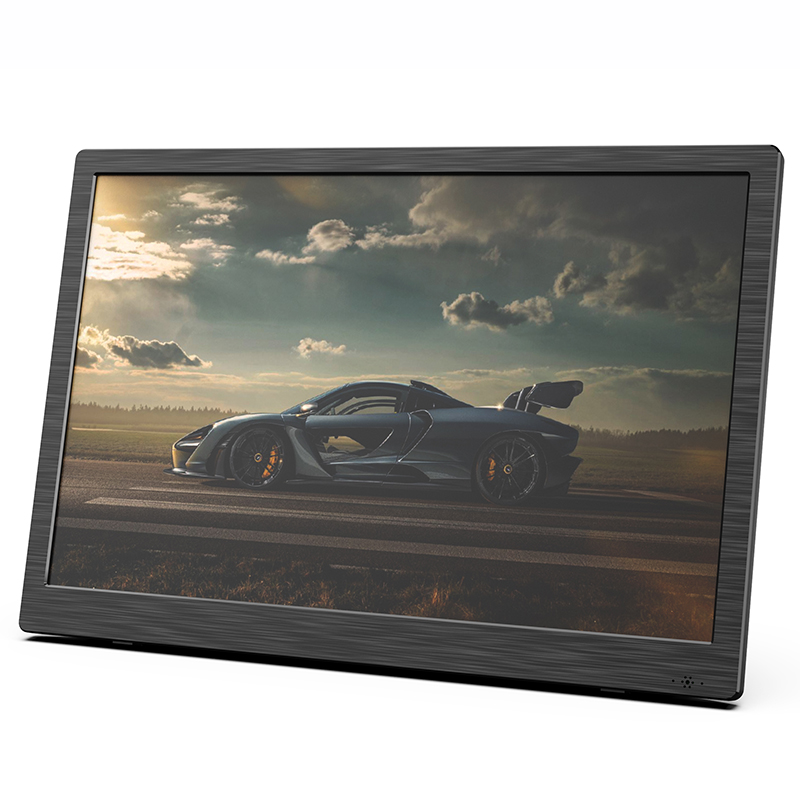

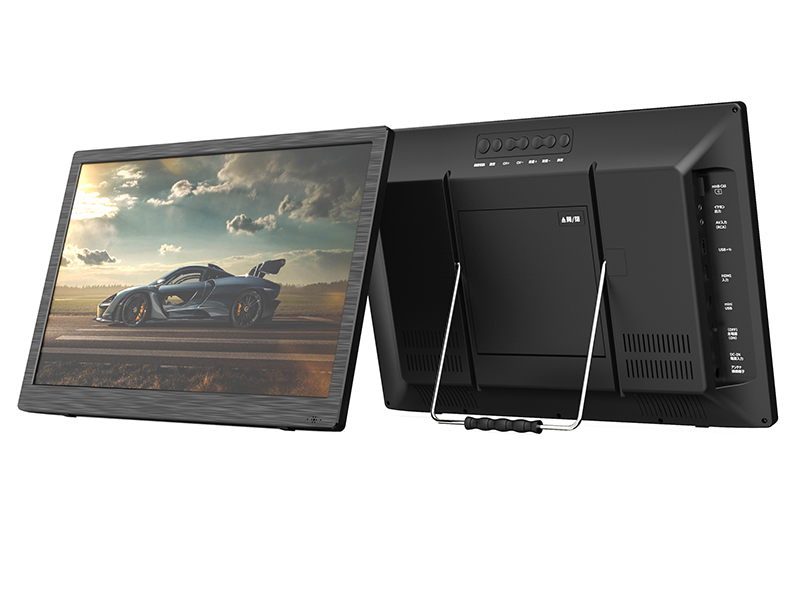

(Product name: 17 inch portable terrestrial digital TV with video recording function)
1. Power supply: DC input 12V/2A, adapter AC100 ～ 240V50/60Hz
2. Appearance dimension: about 398 (W) X38 (H) X270 (D) mm
3. Product weight: about 1.6kg (including battery)
4. Screen size: 17 inch TFT LCD (16:10) resolution 1440X900
5. Power consumption: about 18W
6. Working temperature: about 0 ℃~40 ℃
7. TV receiving channel: terrestrial digital broadcasting UHF (13 ～ 62ch) (full band/single band)
※ The terrestrial digital receiving environment using network lines is not supported
8. EPG Program Guide: August 8

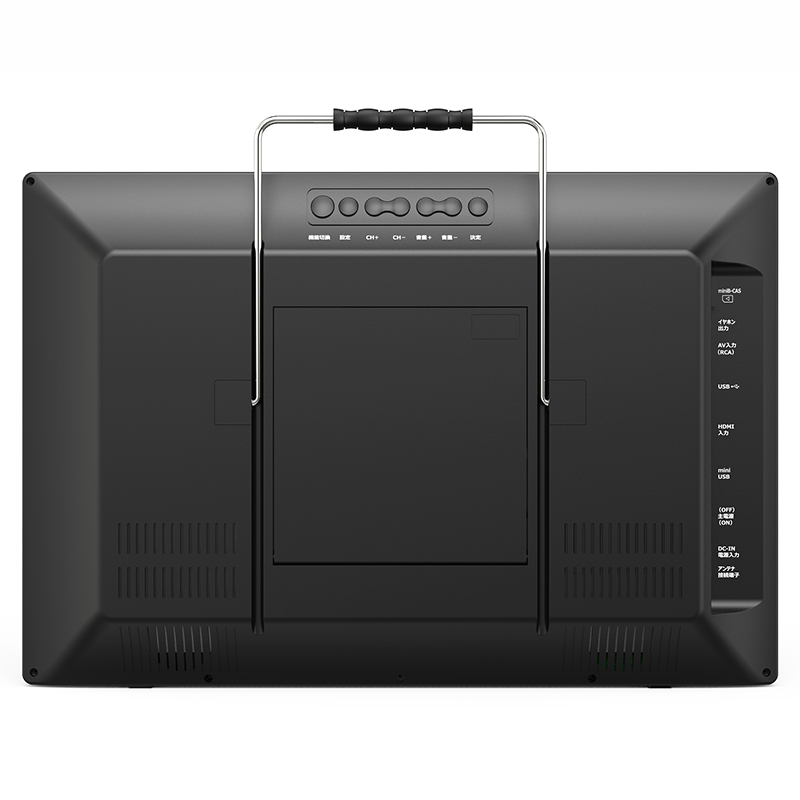

9. Input terminals: AV input terminal, HDMI input terminal, antenna input terminal, DC input（ φ 4.0mm）
10. Output terminal: headphone output（ φ 3.5mm）
11. Interface: miniB CAS slot · USB2.0 slot × 2 (for video recording/data regeneration)
(※ Recommended memory capacity of the slot for terrestrial digital TV recording:~500GB)
(※ Recommended memory capacity of socket for data regeneration:~32GB)
12. Horn output power: 2W * 2
13. Playable file format:
＜ Music ＞ MP3/WMA/WAV/AAC
＜ Animation ＞ MP4/MPEG-PS/WMV/AVI/3GP
＜ Image ＞ JPEG/BMP
＜ Text ＞ TXT
14. Supported disc format: CD. CD-R/RW; DVD, DVD-R/RW (including VR mode/CPRM disc)
15. Built in rechargeable battery: Li Po (lithium polymer) 7.4V2000mAh 14.8Wh
16. Battery charging and discharging time: charging time: about 4 hours; playing time: about 1.5 hours (※ The charging time and charging and regeneration time vary according to the use environment)
