TV Series

Product specification parameters

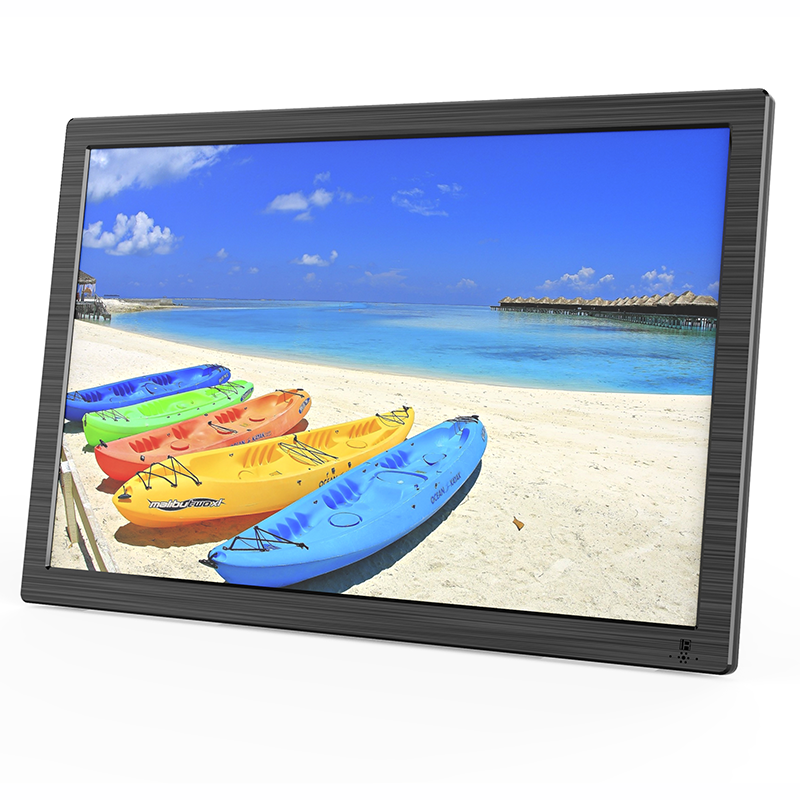

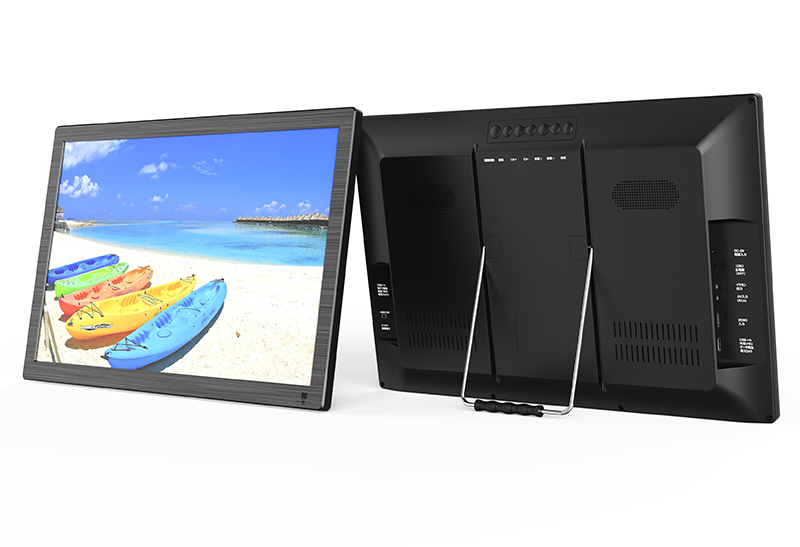

(Product name: 19 inch portable terrestrial digital TV with video recording function)
1. Power supply: DC input 12V/3A, adapter AC100 ～ 240V50/60Hz
2. Appearance dimension: about 451 (W) X35 (H) X301 (D) mm
3. Product weight: about 2.2kg (including battery)
4. Screen size: 19 inch TFT LCD (16:10) resolution 1440X900
5. Power consumption: about 27W
6. Working temperature: about 0 ℃~40 ℃
7. TV receiving channel: terrestrial digital broadcasting UHF (13 ～ 62ch) (full band/single band)
※ The terrestrial digital receiving environment using network lines is not supported
8. EPG Program Guide: August 8

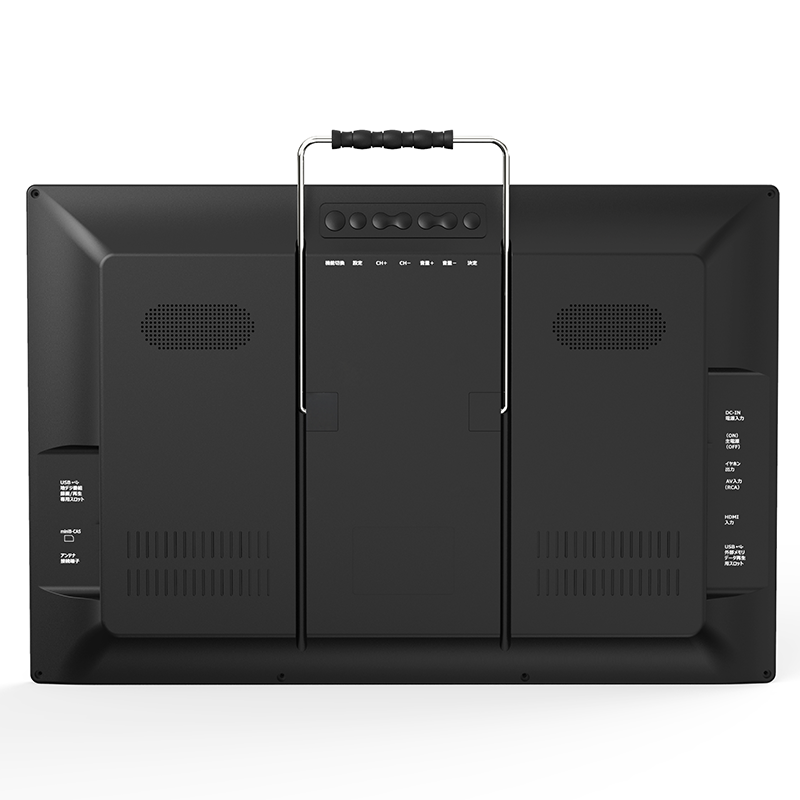

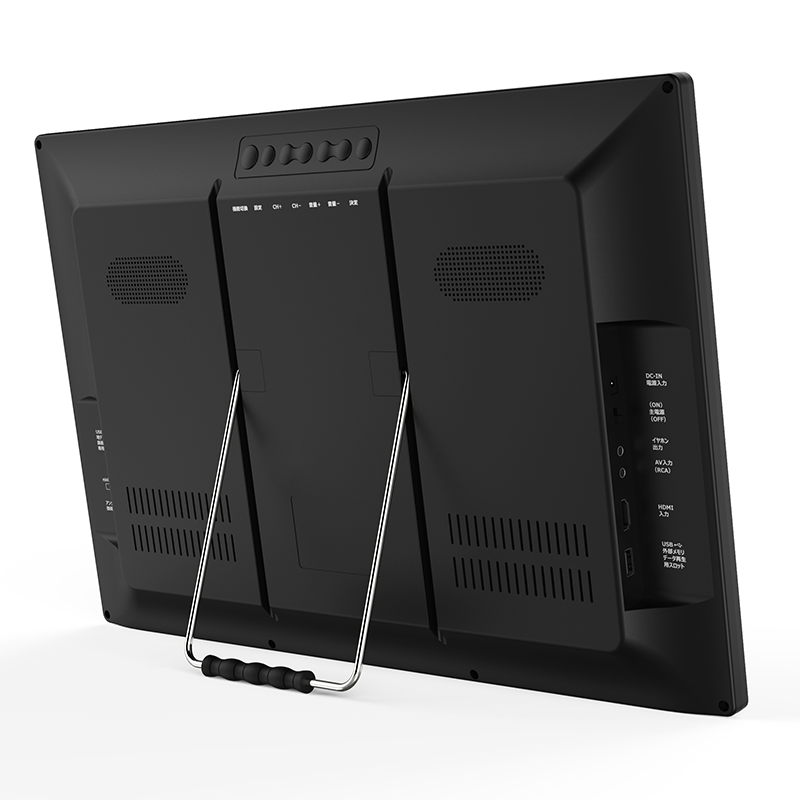

9. Input terminals: AV input terminal, HDMI input terminal, antenna input terminal, DC input（ φ 4.0mm）
10. Output terminal: headphone output（ φ 3.5mm）
11. Interface: miniB CAS slot · USB2.0 slot × 2 (for video recording/data regeneration)
(※ Recommended memory capacity of the slot for terrestrial digital TV recording:~500GB)
(※ Recommended memory capacity of socket for data regeneration:~32GB)
12. Horn output power: 2W * 2
13. Playable file format:
＜ Music ＞ MP3/WMA/WAV/AAC
＜ Animation ＞ MP4/MPEG-PS/WMV/AVI/3GP
＜ Image ＞ JPEG/BMP
＜ Text ＞ TXT
14. Built in rechargeable battery: Li Po (lithium polymer) 7.4V/4000mAh 29.6Wh
15. Battery charging and discharging time: charging time: about 5.5 hours; playback time: about 1.5 hours (※ The charging time and charging and regeneration time vary according to the use environment)
